Used Engine Buying Guide: Mileage, Compression, Warranty and Fitment

Automotive engineering has advanced dramatically over the past two decades. Tighter CNC machining tolerances, low-friction cylinder coatings, and superior synthetic motor oils have substantially expanded the average operational lifespan of modern engines. Where powertrains from the 1980s were considered tired at 100,000 miles, modern internal combustion engines routinely deliver 200,000 to 250,000 miles of reliable service when maintained with routine oil changes.

When evaluating a used engine, mileage serves as the baseline metric for mechanical wear. However, mileage must be considered in context. An engine that accumulated 60,000 miles of sustained highway commuting has experienced far fewer cold-start friction cycles, minimal thermal shock, and negligible idle hours compared to a municipal fleet engine with 40,000 miles of stop-and-go city operation.

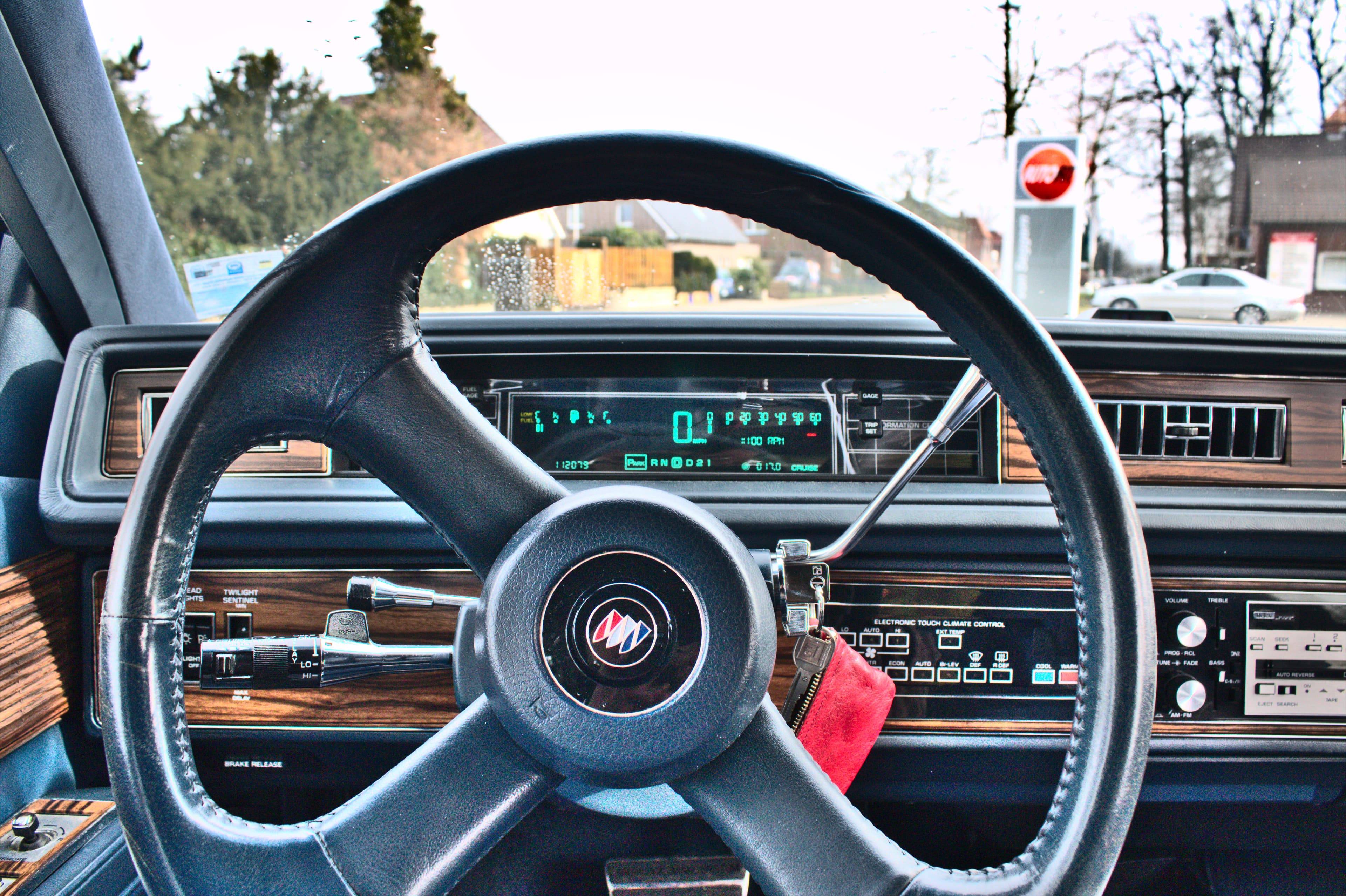

Reputable automotive recyclers verify donor vehicle mileage prior to engine extraction through physical digital odometer reading, electronic control module (ECM/PCM) internal freeze-frame data, and verified title records registered with the National Motor Vehicle Title Information System (NMVTIS). Always request documented mileage confirmation before placing an order.

A cosmetic visual inspection of an engine block can never substitute for forensic mechanical pressure testing. A clean, pressure-washed exterior can easily conceal burnt exhaust valves, stuck piston rings, or scoring on the cylinder bore. Therefore, cylinder compression testing is the single most critical diagnostic benchmark performed on recycled powertrains prior to cataloging.

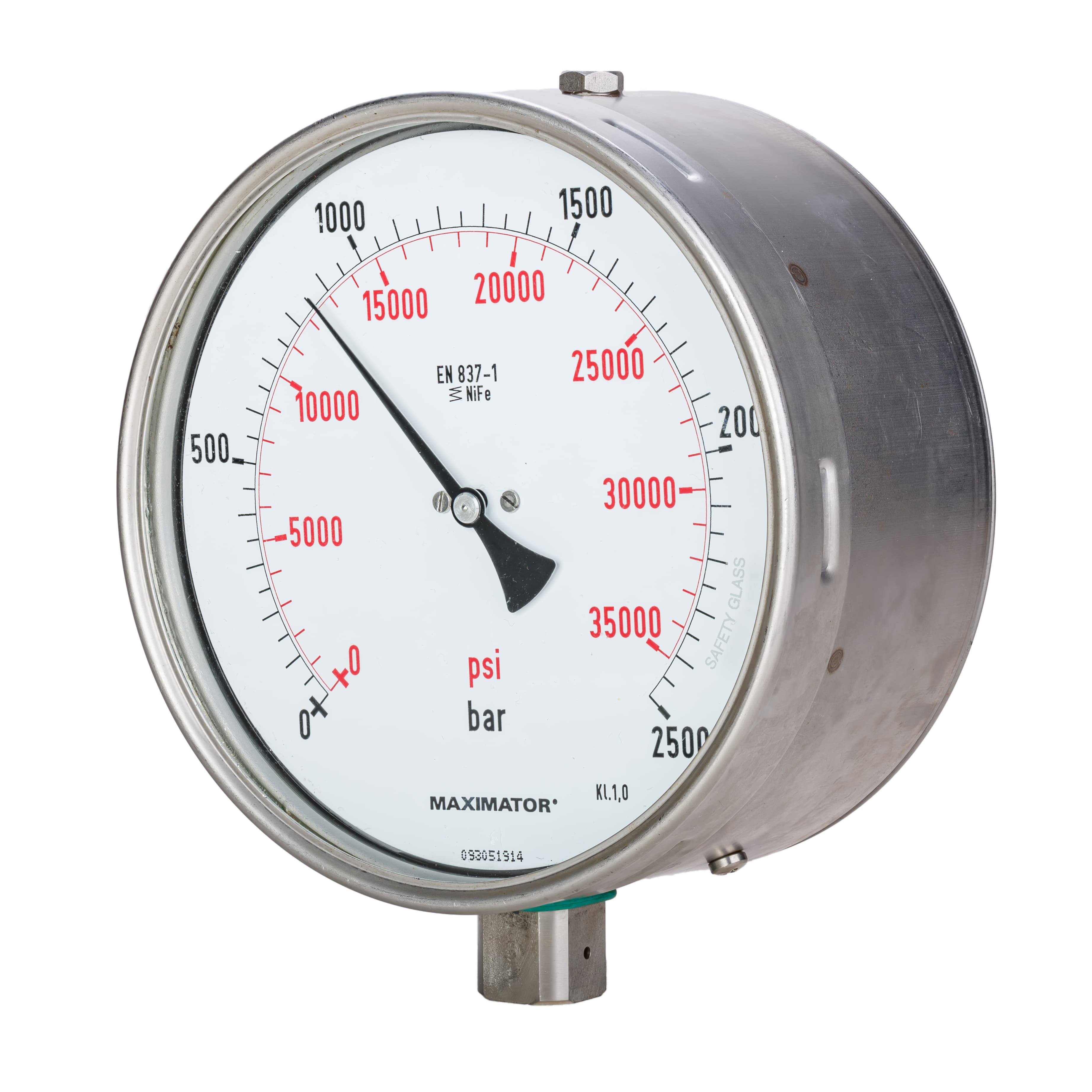

During a standard bench compression test, the engine is fitted with a high-torque starter on a test stand, spark plugs are removed, and a calibrated pressure gauge is threaded into each spark plug port. As the starter cranks the crankshaft through multiple cycles, the gauge records peak dynamic pressure in pounds per square inch (PSI). While absolute PSI figures can vary based on ambient temperature and cranking speed, the vital diagnostic metric is cylinder-to-cylinder variance.

If a cylinder exhibits substandard compression, technicians conduct a secondary "wet" compression test by introducing a small volume of motor oil into the combustion chamber. If the pressure rises significantly, worn piston rings or cylinder wall scuffing are the root cause. If the pressure remains low, the pressure loss is attributable to a leaking valve seat or a compromised cylinder head gasket.

When purchasing a replacement powertrain, understanding engine assembly terminology avoids unexpected surprises during installation. Sourcing a "short block" means acquiring only the lower rotating assembly: the engine block casting, crankshaft, connecting rods, main bearings, and pistons. A short block requires you to machine your original cylinder heads, install new head gaskets, transfer camshafts, and assemble the entire valvetrain—adding substantial specialized labor hours.

In contrast, professional auto recyclers sell used engines primarily as "long blocks." A recycled long block arrives with the lower rotating assembly and the upper valvetrain fully assembled and timed at the factory. This includes the cylinder block, cylinder head(s), camshafts, valves, timing chains or belts, timing covers, valve covers, and the oil pan. Because the internal combustion chambers remain sealed, factory-set valve lash and timing geometry remain undisturbed.

Buyers should note that external bolt-on peripherals are typically stripped prior to shipment or left attached purely as a shipping convenience. These non-warrantied external items include the alternator, power steering pump, air conditioning compressor, starter motor, throttle body, fuel injectors, intake and exhaust manifolds, and engine wiring harnesses. Your mechanic will inspect, clean, and transfer these components from your existing core engine.

One of the most frequent mistakes made by car owners is assuming that any engine of the same displacement from the same model line will interchange seamlessly. In reality, automakers implement continuous engineering revisions throughout a vehicle’s production lifecycle. A 2.5-liter engine produced in early 2018 may feature a different variable valve timing actuator, transmission bellhousing bolt circle, or cylinder head port shape than an engine built in late 2019.

To guarantee 100% mechanical and electronic compatibility, the automotive recycling industry relies on two standardized identification systems: the Vehicle Identification Number (VIN) and the Hollander Interchange system. In all North American standard 17-digit VINs, the 8th character specifically identifies the factory engine configuration, horse-power rating, fuel delivery system, and emissions family.

Furthermore, Hollander Interchange assigns unified five-digit numbers to parts across vehicle makes and models that share identical powertrain architecture. For example, an engine shared between a pickup truck and an SUV across multiple corporate brands will carry an identical interchange index. Before ordering, verify both your VIN and transmission type (automatic vs. manual, front-wheel drive vs. all-wheel drive) with your parts specialist.

Different engine architectures exhibit distinct internal balance characteristics, thermal profiles, and wear tendencies. Understanding the mechanical fundamentals of your vehicle’s specific cylinder layout helps you evaluate a used engine’s structural condition and pinpoint components requiring pre-installation maintenance.

Inline-four (I4) engines are the dominant configuration in modern passenger cars and compact crossovers. Because all cylinders are arranged in a single vertical bank, an I4 features a single cylinder head and simplified timing layout. However, inline-four engines suffer from inherent secondary vertical vibrations, which many manufacturers counteract using internal counter-rotating balance shafts driven by the oil pump or crankshaft gears. When inspecting a used I4, technicians prioritize checking timing chain tensioner extension and balance shaft bearing smoothness.

V6 and V8 configurations introduce dual cylinder heads arranged in an angle—typically 60 degrees for modern V6s and 90 degrees for V8s. In transverse front-wheel-drive V6 installations, the rear cylinder head sits near the firewall in an elevated heat zone, making valve cover gaskets and rear spark plug tube seals prone to heat embrittlement. In large-displacement V8 engines, particularly those fitted with variable displacement or active fuel management (AFM/MDS), technicians inspect the specialized roller lifters and oil pressure relief valves for signs of sticky actuation or valvetrain tick.

A comprehensive warranty is the hallmark of a reputable auto recycler. Used engines represent complex mechanical systems, and purchasing a powertrain without verifiable warranty protection introduces unnecessary financial risk. Quality suppliers back their tested engines with standard warranty periods ranging from 30 to 90 days, with extended 6-month to 1-year coverage options available for daily drivers and commercial fleets.

It is crucial to understand what standard powertrain warranties cover and what they exclude. Warranties universally protect internal lubricated mechanical components: the cylinder block casting, crankshaft, main and rod bearings, connecting rods, pistons, piston rings, wrist pins, camshafts, valvetrain, and cylinder head castings. If any internal lubricated component experiences mechanical failure under normal operating conditions, the supplier provides a replacement unit or refund.

Conversely, warranties explicitly exclude external peripheral items that are subject to environmental degradation or wear. These include rubber accessory drive belts, coolant hoses, spark plugs, electrical sensors, wiring harnesses, gaskets, and seals. Furthermore, thermal overheating—indicated by melted heat indicators installed on the cylinder head—or oil starvation resulting from improper fluid levels will void warranty protection.

Because an automotive engine assembly exceeds standard courier weight limits (weighing anywhere from 350 pounds for a compact four-cylinder to over 750 pounds for an iron-block V8), engines ship through specialized Less-Than-Truckload (LTL) freight networks. Preparing an engine for transit requires strict industrial procedures: all residual motor oil and coolant are drained to comply with hazardous materials regulations, and the assembly is strapped to a reinforced wooden pallet with heavy-duty steel or polyester banding and sealed in weather-resistant shrink-wrap.

When arranging freight delivery, you must choose between a commercial destination and a residential address. Shipping directly to a commercial automotive repair facility, collision shop, or local business with a dedicated loading dock or forklift is strongly advised. Commercial freight carriers deliver during standard business hours without requiring special appointment scheduling, and the receiving mechanic can inspect the pallet immediately.

If you require residential delivery, you must request "liftgate service" during checkout. Standard 53-foot semi-trailers cannot lower freight to ground level without a mechanical liftgate. The freight carrier will contact you in advance to schedule a delivery appointment window, and the driver will lower the palletized engine to the curbside or driveway. Alternatively, buyers can opt for terminal pickup at the local freight hub, where dock staff load the pallet directly into your pickup truck or utility trailer at no extra charge.

A used engine swap represents a major mechanical undertaking, and adhering to strict pre-installation protocols is essential to long-term reliability. Attempting to rush the installation by dropping a replacement engine directly into the chassis without replacing perishable wear items is false economy. Performing simple gasket and seal replacements while the engine sits unobstructed on a 360-degree rotating engine stand takes minutes, whereas doing so later inside a cramped engine bay requires hours of costly teardown.

Foremost among pre-installation priorities is the rear main crankshaft oil seal. The rear main seal sits directly between the back of the crankshaft and the transmission flywheel or flexplate. Replacing this seal while the engine and transmission are separated requires just a few minutes and a nominal parts cost. If an aged rear main seal begins leaking after the swap, the entire transmission must be pulled again to replace it.

Equally critical is the pre-lubrication (priming) protocol before initial ignition. Used engines may sit in warehouse storage racks for several weeks or months prior to sale, allowing residual oil to drain away from upper camshaft journals, lifters, and rod bearings. Cranking an unprimed engine under full combustion load can cause microscopic bearing scuffing. Technicians disable fuel and ignition systems to crank the starter until positive oil pressure registers on the dashboard gauge, ensuring all hydraulic passages are fully pressurized before first fire.
